Cartoning Machine: How PINLONG Engineering is Streamlining Packaging Automation

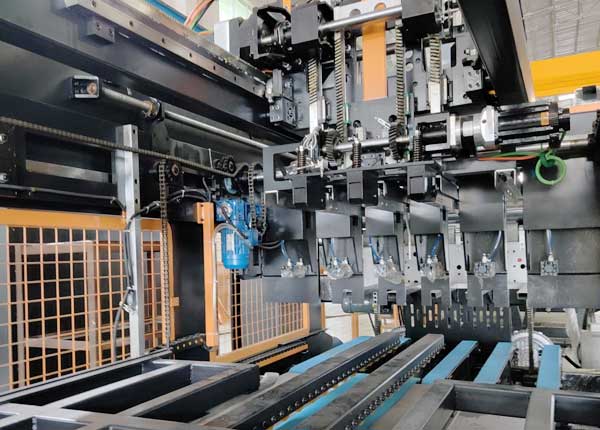

Cartoning Machine

In the highly competitive landscapes of pharmaceuticals, food and beverage, cosmetics, and consumer goods, efficiency, accuracy, and hygiene in final packaging are non-negotiable. The final step—placing a product into its cardboard box—is a critical point where speed and precision directly impact profitability and brand integrity. This crucial task is the domain of the automatic cartoning machine. For manufacturers worldwide, selecting a reliable and high-performance cartoning machine is a strategic investment. This is where PINLONG, a brand synonymous with robust engineering and innovative automation, delivers solutions that set new benchmarks in packaging performance.

PINLONG approaches the design of its cartoning machines with a clear understanding of the real-world challenges on a production floor. A cartoning machine is more than just a mechanism; it is a sophisticated system that must harmoniously integrate product loading, carton erection, insertion, and closure. PINLONG’s philosophy is to build machines that are not only fast but also exceptionally reliable, versatile, and easy to operate, ensuring seamless integration into high-speed production lines.

The Core Mechanism of a PINLONG Cartoning Machine

A PINLONG cartoning machine operates with a precision that transforms flat carton blanks into neatly packaged products with remarkable efficiency. The process can be broken down into several key stages, each engineered for optimal performance:

1. Carton Blank Magazine: The process begins with a stack of flat, die-cut carton blanks loaded into an automatic magazine. The machine’s intelligent feeding system ensures a consistent and reliable supply of blanks to the erection section, minimizing the need for operator intervention and preventing jams.
2. Carton Erection and Bottom Sealing: This is where the magic of transformation happens. Suction cups, designed for gentle yet firm handling, precisely pick a single blank and open it into a three-dimensional form. The machine then neatly tucks and secures the bottom flaps, typically using a combination of mechanical folding and hot-melt glue for a secure, tamper-evident seal. The reliability of this stage is paramount, and PINLONG engineers it for flawless operation at high speeds.
3. Product Loading: With the carton now open and upright, the product is loaded. PINLONG cartoning machines are highly adaptable at this stage. They can be configured for manual loading stations or, more commonly, integrated with upstream equipment for fully automatic loading. This can include loading vials, blister packs, syringes, bottles, or pouches with pinpoint accuracy. Advanced vision systems can be incorporated to verify product presence and orientation before the carton moves to the next stage.
4. Top Flap Closing and Sealing: Once the product is securely inside, the machine neatly folds the top flaps closed. PINLONG offers various sealing methods to suit different product requirements, including hot-melt glue, adhesive tapes, or mechanical tuck-in locks. The sealing pressure and mechanism are carefully calibrated to ensure a perfectly closed, professional-looking box every time, ready for retail.

The PINLONG Engineering Advantage: Built for Demanding Environments

What truly sets a PINLONG cartoning machine apart are the core engineering principles embedded in its design:

• Robust Construction for Maximum Uptime: PINLONG machines are built on a foundation of high-grade stainless steel and hardened alloys. This not only ensures compliance with hygiene standards in industries like pharmaceuticals and food but also guarantees exceptional durability. The rigid frame minimizes vibrations during high-speed operation, which is critical for maintaining precision and reducing wear and tear, leading to longer machine life and less unplanned downtime.
• Uncompromising Precision with Servo-Driven Technology: Modern packaging demands flexibility. PINLONG extensively uses servo-motor technology in its cartoning machines. This allows for incredibly precise control over every movement, from carton picking to product placement. Changeovers between different carton sizes and styles become significantly faster and simpler, often managed through pre-set recipes on the user-friendly HMI (Human-Machine Interface) touchscreen. This minimizes changeover downtime and allows manufacturers to handle short runs and long runs with equal efficiency.
• Hygienic and Easy-to-Clean Design: In sensitive industries, cleanliness is critical. PINLONG cartoning machines are designed with sanitary principles in mind. Features include smooth, rounded surfaces without dirt traps, easy-access panels for quick cleaning and maintenance, and the use of materials that can withstand aggressive cleaning agents. This design philosophy supports compliance with strict regulatory standards like cGMP.
• User-Centric Control and Monitoring: Operation is centralized through an intuitive PLC-based control system. The color touchscreen provides operators with real-time data on production speed, output counts, and machine status. Alarm systems quickly pinpoint the location and nature of any fault, enabling rapid resolution and reducing waste. This level of transparency empowers operators and maintenance teams to keep the line running smoothly.

Versatility Across Key Industries

The adaptability of PINLONG cartoning machines makes them a valuable asset across a wide range of sectors:

• Pharmaceutical: Handling everything from small vials and ampoules to blister packs and syringes, with options for leaflet insertion in a single, validated process.
• Food & Beverage: Packaging tea bags, coffee pods, snack bars, and other food items, ensuring gentle handling and hygienic sealing.
• Cosmetics & Personal Care: Erecting and filling elegant cartons for luxury creams, perfumes, and other beauty products, where presentation is key.
• Consumer Goods: Automating the packaging of hardware, electronics, and other small consumer items efficiently.

A Partnership for Productive Packaging

Choosing a PINLONG cartoning machine is an investment in a long-term partnership. The company provides comprehensive support, from initial installation and validation to operator training and a responsive global service network. This ensures that manufacturers can achieve their production targets with confidence, knowing that technical expertise and spare parts are readily available.

In an industry where packaging speed, accuracy, and flexibility are directly tied to market success, the PINLONG cartoning machine stands as a testament to intelligent, reliable engineering. It is a solution designed to optimize the final step of production, ensuring that products are packaged perfectly, every time.

For businesses looking to enhance their automated packaging lines, increase output, and maintain the highest standards of quality, the PINLONG brand offers a trusted and powerful pathway to operational excellence. Discover how a PINLONG cartoning machine can transform your packaging process.
